適用于：管道管線中

作用：吸收管道熱脹冷縮的軸向位移

缺點：請?jiān)诠艿肋M(jìn)水口加裝有效去除氯離子裝置（氯離子含量不超過25mg/L），避免水氯離子含量超標，產生針孔腐蝕；

取代者：橡膠接頭是用在設備進出口的，可以補償軸向和橫向位移，減震效果是最好的。并且不受管道內部介質的腐蝕。

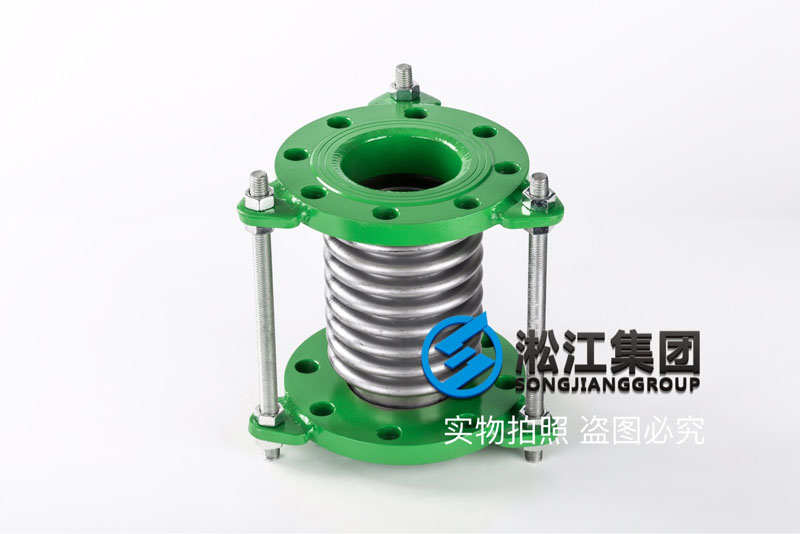

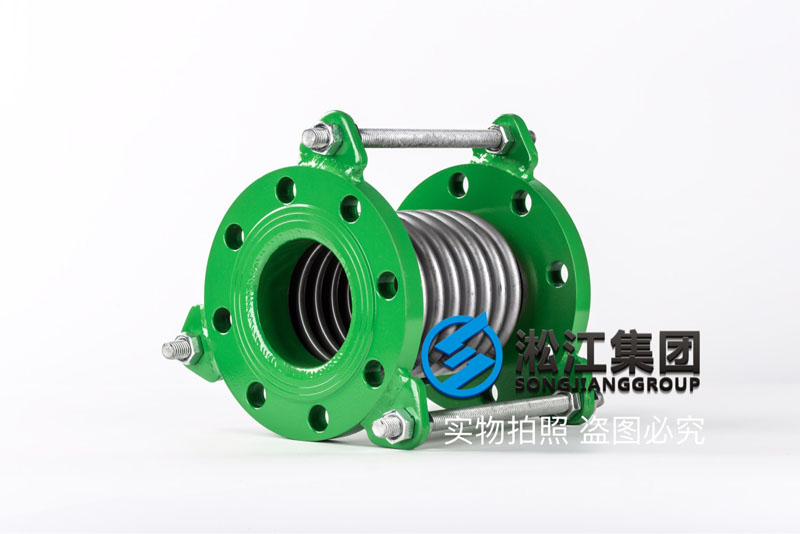

Name: DN80 orthodox 304 bellows compensator

Caliber: DN80mm

Pressure: PN16

Wave number: 8 wave

Thickness: 0.8mm

Length: 180mm

Scalability: 34mm

Corrugated material: stainless steel 304

Flange material: carbon steel (forging)

Brand: Songjiang group

Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

了解該產品參數信息請點擊：【樣冊P93】BGF型 不銹鋼波紋補償器

材料說明：

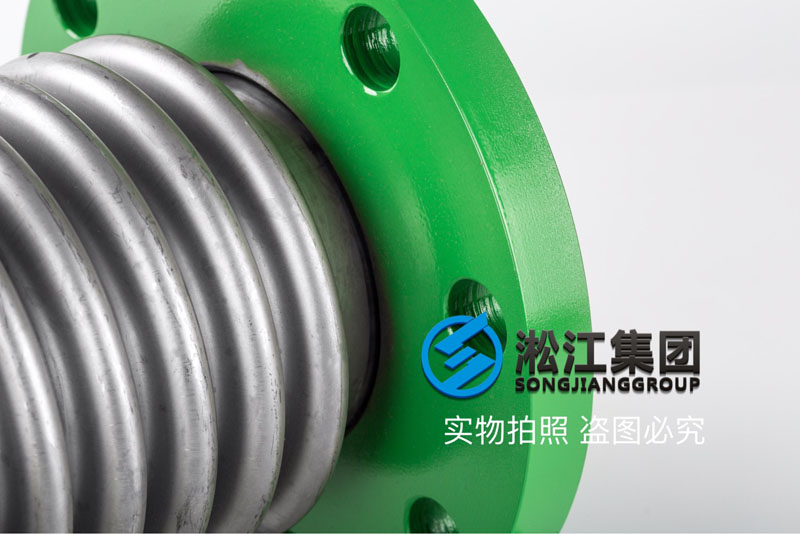

波紋管體：為了更持久的使用壽命，全部采用不銹鋼304正材生產，支持各種光譜儀檢測，假一賠十，厚度全部厚于同行業標準。

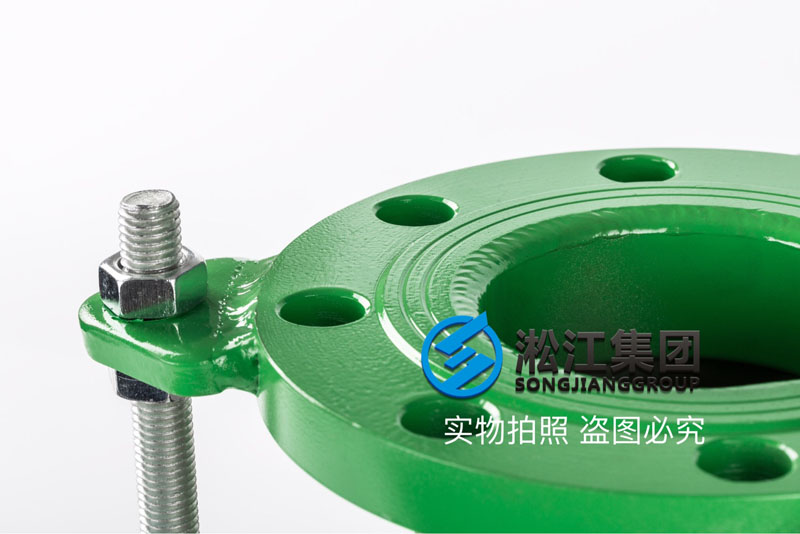

連接法蘭：法蘭全部采用山西正宗鍛打材質，無論是強度還是密封性都是很好的材質，不要拿市面上的鑄鋼、鋼板鋼法蘭來對比，沒有任何可比性。
焊材：焊材全部采高于母材等級標準，讓焊接點更加牢固。
限位耳板：耳板全部采用加大加厚尺寸生產，每個型號都可以與同行業同型號去一對一的對比，這就是所謂的沒有對比就沒有傷害。
限位螺桿：螺桿全部采用8.8級高強度鍍鋅，為100%確保產品的綜合強度，不要與市面的4.8級來對比，無意義。
生產標準：淞江集團通過德國萊茵TUV認證，并且嚴格按照壓力管道生產要求進行生產，讓出廠的每一個波紋補償器產品達到100%的合格。

DN80正宗304波紋管補償器采用奧氏體不銹鋼材料或按用戶要求的材料制造，具有優良的柔軟性，耐蝕性，耐高溫性，耐高壓性，在管路中可對軸向位移進行補償，用以溫度補償和吸收振動、降低噪聲、改變介質輸送方向、消除管道間或管道與設備間的軸向位移等，DN80正宗304波紋管補償器對有軸向位移、振動的管道尤為適用。

DN80正宗304波紋管補償器屬于一種補償元件。利用其工作主體波紋管的有效伸縮變形，以吸收管線、導管、容器等由熱脹冷縮等原因而產生的軸向變化，或補償管線、導管、容器等的軸向位移。也可用于降噪減振。

Material description:

Bellows body: in order to prolong the service life, all of them are made of stainless steel 304 normal materials, and support the detection of various spectrometers. One false is compensated for ten, and the thickness is all thicker than that of the same industry standard.

Connecting flanges: all flanges are made of Shanxi authentic forged materials, which are good in strength and tightness. Do not compare them with cast steel, steel plate and steel flanges on the market. There is no comparability.

Welding materials: all welding materials shall be higher than the grade standard of base metal to make the welding point more firm.

Limit ear plate: all ear plates are produced by increasing the thickened size. Each model can be compared one-to-one with the same model in the same industry, which is the so-called no harm without comparison.

Limit screw: all screws are made of grade 8.8 high-strength galvanized to ensure 100% of the comprehensive strength of the product. It is meaningless to compare with grade 4.8 in the market.

Production standard: Songjiang group has passed the TUV certification of Rhine, Germany, and produces in strict accordance with the production requirements of pressure pipeline, so that each corrugated compensator product delivered can reach 100% qualification.

DN80 authentic 304 bellows compensator is made of austenitic stainless steel or materials required by users. It has excellent flexibility, corrosion resistance, high temperature resistance and high pressure resistance. It can be connected in any direction in the pipeline to compensate for temperature, absorb vibration, reduce noise, change the direction of medium transmission, eliminate mechanical displacement between pipelines or between pipelines and equipment, etc. DN80 authentic 304 bellows compensator has displacement The flexible joints of various pumps and valves that vibrate are particularly suitable.

DN80 authentic 304 bellows compensator belongs to a compensation element. The effective expansion deformation of the bellows of its working body is used to absorb the dimensional changes of pipelines, conduits and containers caused by thermal expansion and cold contraction, or to compensate the axial, transverse and angular displacement of pipelines, conduits and containers. It can also be used for noise reduction and vibration reduction.
